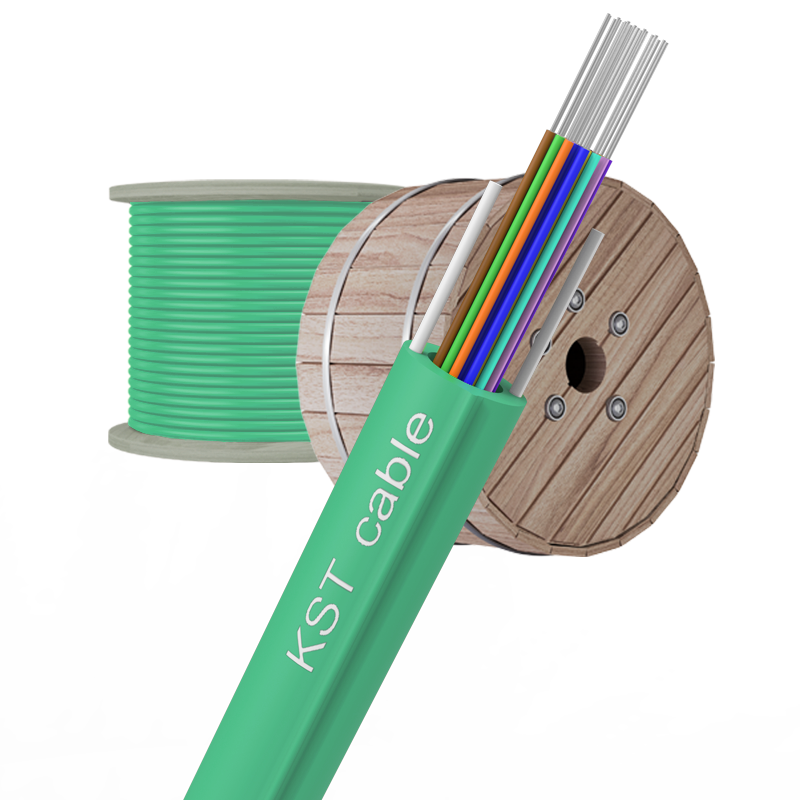

Riser Fiber Optic Cable is a type of fiber optic cable specifically designed for vertical channels within buildings. It is mainly used to connect network devices on different floors of multi-story buildings, such as in data centers, office buildings or residential buildings.
Asistencia para solución de problemas y soluciones de compatibilidad del sistema, disponibles cuando las necesites.
Opciones personalizadas de cantidad de fibras, longitud y color de la funda para satisfacer tus requisitos específicos.

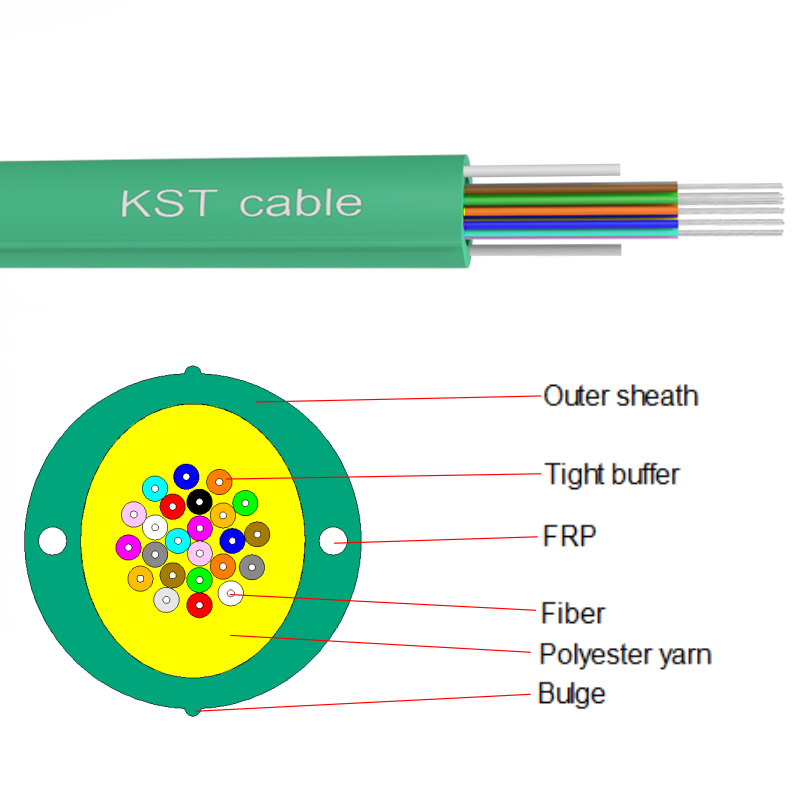

Cable construction details :
| Items | Description | |||||||||
| Number of fiber | 8 | 16 | 24 | |||||||
| Tight buffer | Diameter(mm） | 0.9±0.05 | ||||||||
| Material | PVC | |||||||||
| Strength member | Material | ɸ1.0mm FRP with glued *2 | ||||||||
| Outer sheath | Material | LSZH | ||||||||
| Color | Green & White | |||||||||
| Thickness(mm） | 1.1±0.2 / 2.2±0.2 | |||||||||
| Diameter(mm） | 8.3±0.4 | 10.0±0.5 | 12.0±0.5 | |||||||
| Installation Temperature（℃） | -5+60 | |||||||||
| StorageTemperature（℃） | -20+70 | |||||||||
| Operation and transport temperature（℃） | -20+60 | |||||||||
| Min Bending Radius(mm) | Static | 10D | ||||||||
| Min Bending Radius(mm) | Dynamic | 20D | ||||||||
Tensile Strength(N) | Long term | 400 | ||||||||
| Short term | 800 | |||||||||
| Crush Load (N/100mm) | Short term | 1000 | ||||||||
Optical characteristics：
| Fiber style | Unit | SM G652D | SM G657A1 | SM G657A2 | MM 50/125 | MM 62.5/125 | MM OM3-300 | MM OM4 | MM OM5 | |
| condition | nm | 1310/1550 | 1310/1550 | 1310/1550 | 850/1300 | 850/1300 | 850/1300 | 850/1300 | 850/1300 | |
| attenuation | dB/km | 0.36/0.22 | 0.36/0.22 | 0.36/0.22 | 3.0/1.5 | ≤3.0/1.5 | ≤3.0/1.5 | ≤3.0/1.5 | ≤3.0/1.5 | |
| Relative wavelength attenuation change @1310nm @1550nm | nm | 1282~1330nm | ≤0.03dB/km | ≤0.05dB/km | ≤0.05dB/km | - | - | - | - | - |
| nm | 1525~1575nm | ≤0.02dB/km | ≤0.05dB/km | ≤0.05dB/km | - | - | - | - | - | |
| Dispersion over wavelength range | ps/（nm.km） | 1285~1340nm | ≥-3.0 ≤3.0 | ≤3.5 | ≤3.5 | - | - | - | - | - |
| ps/（nm.km） | 1550nm | ≤18 | ≤18 | ≤18 | - | - | - | - | - | |
| ps/（nm.km） | 1625nm | ≤22 | - | - | - | - | - | - | - | |
| OFL bandwidth | MHz.km | 850nm | - | - | - | - | - | ≥1500 | ≥3500 | ≥3500 |
| MHz.km | 1300nm | - | - | - | - | - | ≥500 | ≥500 | ≥500 | |
| Effective modal bandwidth | MHz.km | 850nm | - | - | - | - | - | ≥2000 | ≥4700 | ≥4700 |
| Zero dispersion wavelength | nm | 1312±10 | 1300~1324 | 1300~1324 | 1295~1320 | 1320~1365 | - | - | - | |
| Zero dispersion slope | ps/（nm².km） | ≤0.092 | ≤0.092 | ≤0.092 | ≤0.001 （λ0-1190） | ≤0.097 | - | - | - | |
| ≤0.11 | ||||||||||
| Application support distance on 10 G Ethernet SX | m | - | - | - | - | 300 | 550 | 600 | ||
