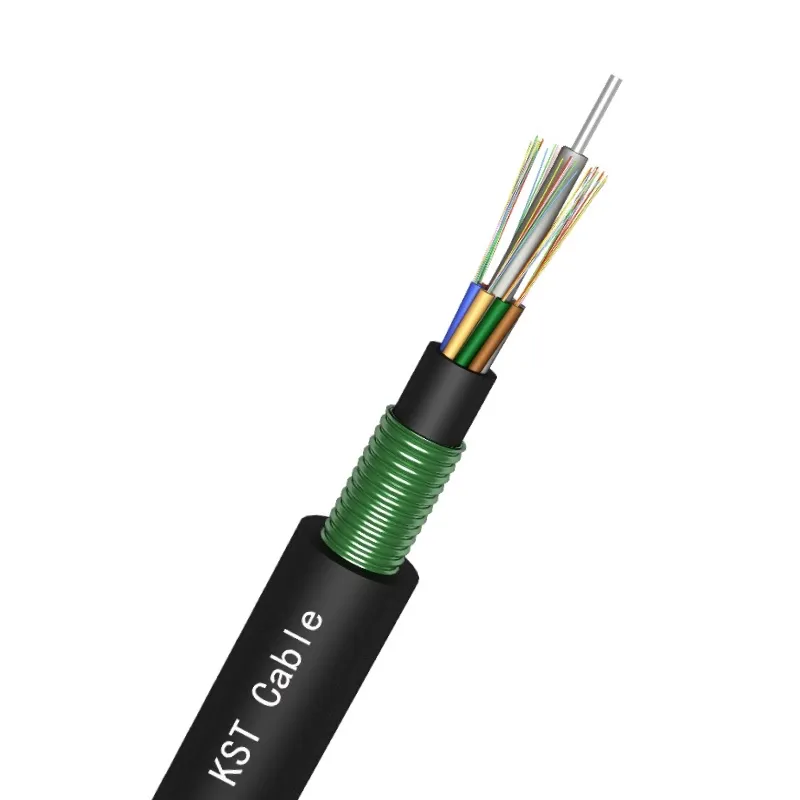

The GYTY53 optical cable features a 250µm fiber in a high-modulus loose tube filled with waterproof compound. It includes a metallic strength member and polyethylene layers for durability. The structure supports various installation environments.
Asistencia para solución de problemas y soluciones de compatibilidad del sistema, disponibles cuando las necesites.
Opciones personalizadas de cantidad de fibras, longitud y color de la funda para satisfacer tus requisitos específicos.

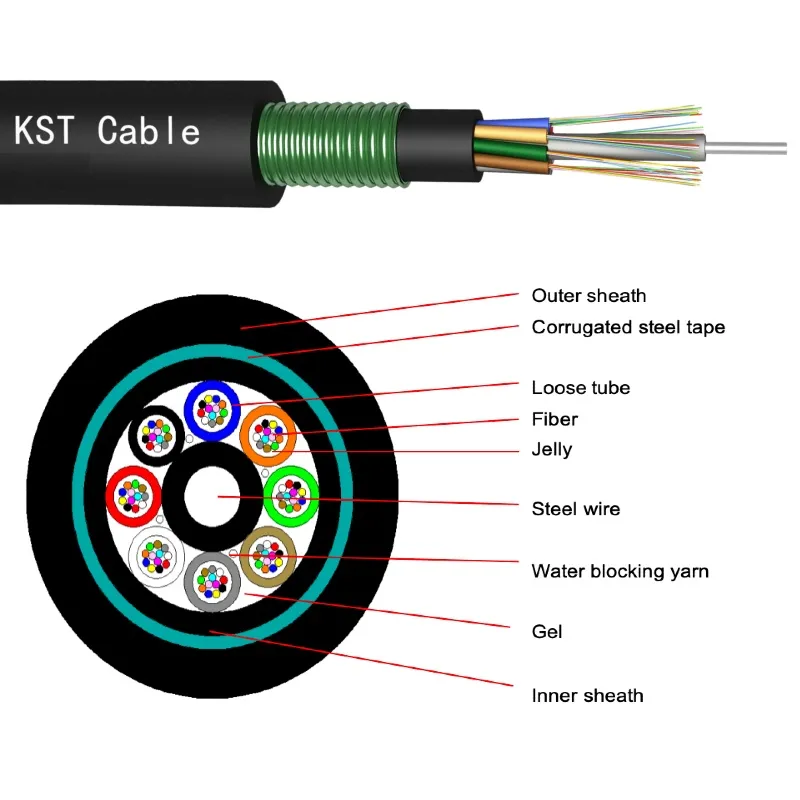

Cable construction details :
| Items | Description | ||||||
| Number of fiber | 12 | 48 | 96 | ||||
| Number of fibers per tube | 12 | 12 | 12 | ||||
| Number of loose tube | 1 | 2 | 8 | ||||
| Loose tube | diameter(mm） | 2.0±0.1 | |||||
| material | PBT | ||||||
| Central strength member | material | Steel wire | |||||
| Moisture Barrier | material | water blocking yarn and Gel | |||||
| Inner sheath | material | PE | |||||
| color | Black | ||||||
| diameter(mm） | 8.0±0.3 | 10.0±0.4 | |||||
| Outer sheath | material | PE | |||||
| color | Black | ||||||
| diameter(mm） | 12.2±0.5 | 14.2±0.5 | |||||
| Min Bending Radius(mm) | Short term | 10D | |||||
| Min Bending Radius(mm) | Long term | 20D | |||||
| Tensile strength（N） | 3000 | ||||||
| Crush Load (N/100mm) | 2000 | ||||||
| Storage or transportation（℃） | -20+70 | ||||||
| Operation and transport temperature（℃） | -20+65 | ||||||
Optical characteristics：
| Fiber style | Unit | SM G652D | SM G657A1 | SM G657A2 | MM 50/125 | MM 62.5/125 | MM OM3-300 | MM OM4 | MM OM5 | |
| condition | nm | 1310/1550 | 1310/1550 | 1310/1550 | 850/1300 | 850/1300 | 850/1300 | 850/1300 | 850/1300 | |
| attenuation | dB/km | 0.36/0.22 | 0.36/0.22 | 0.36/0.22 | 3.0/1.5 | ≤3.0/1.5 | ≤3.0/1.5 | ≤3.0/1.5 | ≤3.0/1.5 | |
| Relative wavelength attenuation change @1310nm @1550nm | nm | 1282~1330nm | ≤0.03dB/km | ≤0.05dB/km | ≤0.05dB/km | - | - | - | - | - |
| nm | 1525~1575nm | ≤0.02dB/km | ≤0.05dB/km | ≤0.05dB/km | - | - | - | - | - | |
| Dispersion over wavelength range | ps/（nm.km） | 1285~1340nm | ≥-3.0 ≤3.0 | ≤3.5 | ≤3.5 | - | - | - | - | - |
| ps/（nm.km） | 1550nm | ≤18 | ≤18 | ≤18 | - | - | - | - | - | |
| ps/（nm.km） | 1625nm | ≤22 | - | - | - | - | - | - | - | |
| OFL bandwidth | MHz.km | 850nm | - | - | - | - | - | ≥1500 | ≥3500 | ≥3500 |
| MHz.km | 1300nm | - | - | - | - | - | ≥500 | ≥500 | ≥500 | |
| Effective modal bandwidth | MHz.km | 850nm | - | - | - | - | - | ≥2000 | ≥4700 | ≥4700 |
| Zero dispersion wavelength | nm | 1312±10 | 1300~1324 | 1300~1324 | 1295~1320 | 1320~1365 | - | - | - | |
| Zero dispersion slope | ps/（nm².km） | ≤0.092 | ≤0.092 | ≤0.092 | ≤0.001 （λ0-1190） | ≤0.097 | - | - | - | |
| ≤0.11 | ||||||||||
| Application support distance on 10 G Ethernet SX | m | - | - | - | - | 300 | 550 | 600 | ||
